PRODUCT CONFIGURATION: 1.WINDOW SYSTEM : THERMAL BREAK 2.PROFILE TYPE: 6063-T5 3.PROFILE THICKNESS: FRAME 2.0MM 4.SURFACE COATING: POWDER COATING / PVDF COATING 5.STANDARD GLASS CONFIGUATION : 5MM+18A+5MM 6.HARDWARE SYSTEM : GERMANY WEHAG / DOMESTIC BRAND 7.ENERGY RATING : U - VALUE ≤ 0.18 / SHGC ≤ 0.21
The table below outlines the key specifications of the Thermal Break Aluminum Casement Window. It covers structure, materials, glass options, hardware, finishes, and size range for quick reference.

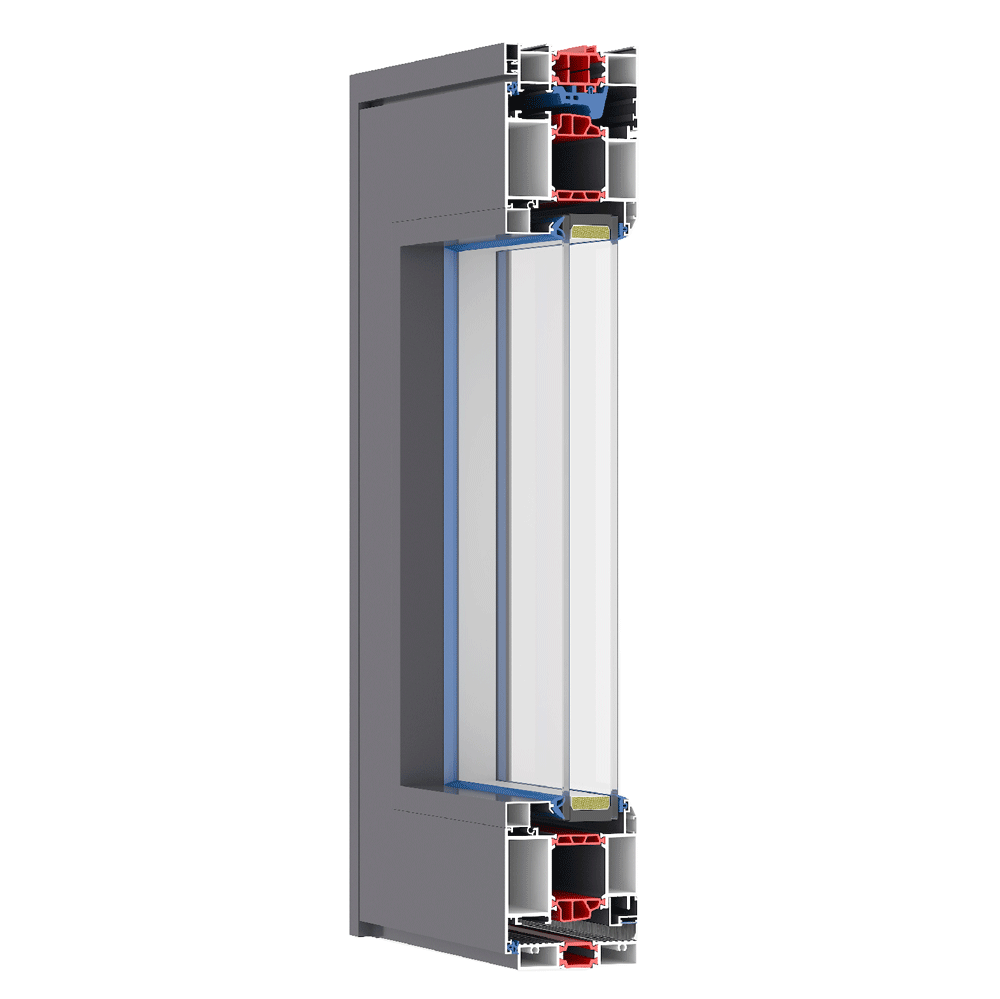

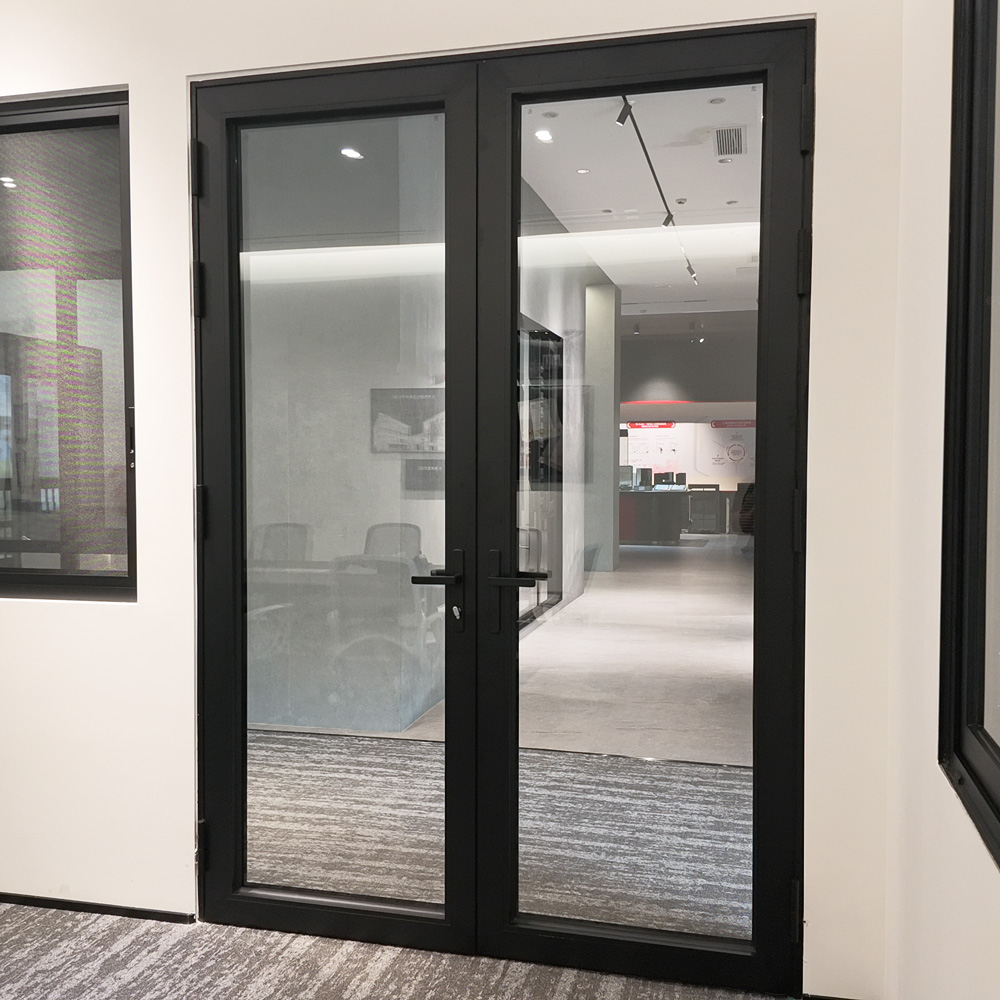

| Window Type | Thermal Break Aluminum Swing Door |

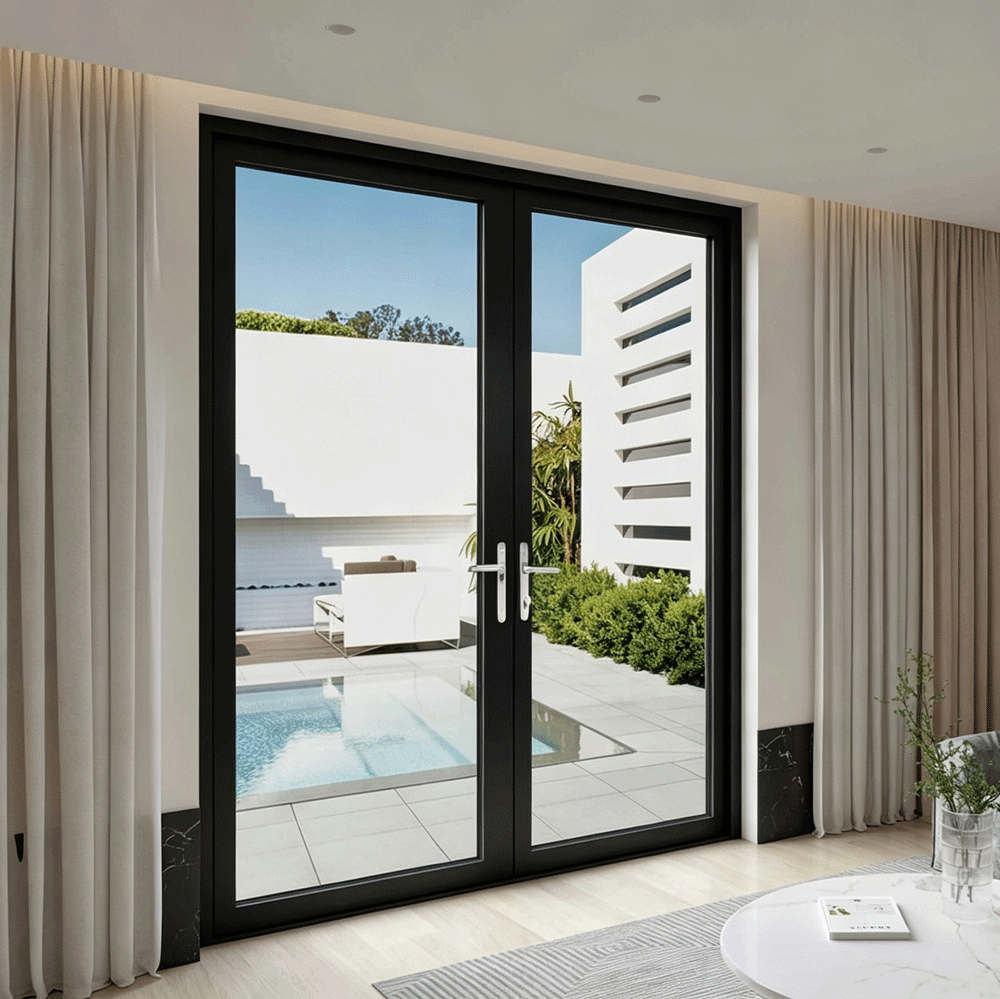

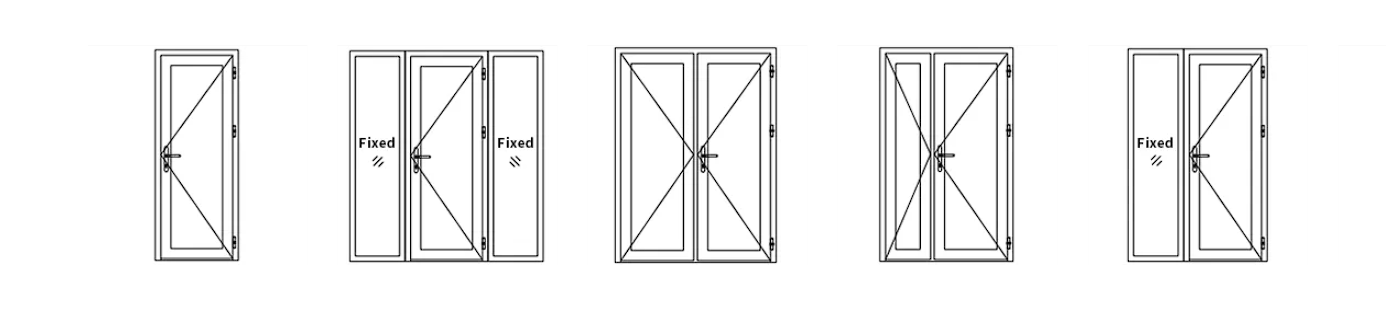

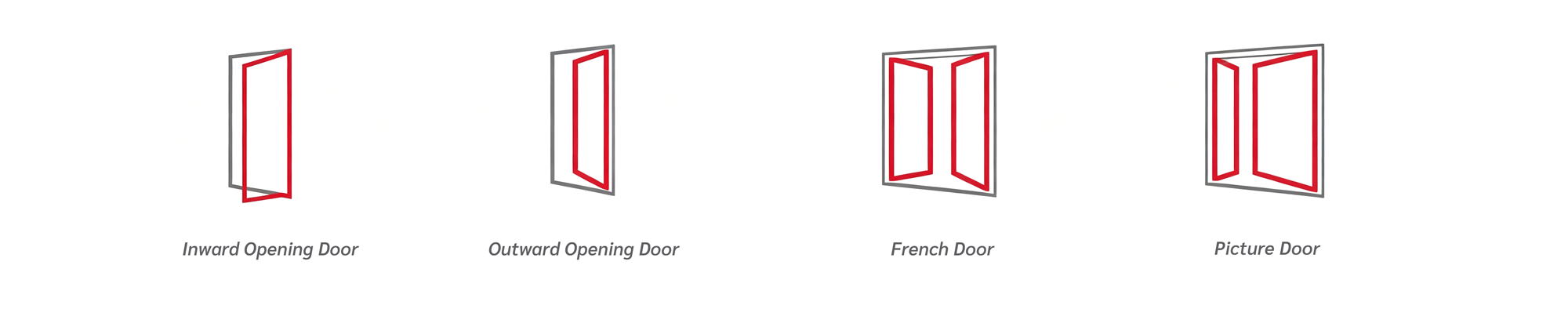

| Opening Type | Inswing Door，Outswing Door，French Door，Picture Door |
| Standard Configuration | 6063-T6 Primary aluminum Profile |
| 2.2mm aluminum profile thickness | |
| Standard Glass | 5mm+27Ar+5mm double tempered insulated glass with PVDF Spacer |
| Glass Details | Aluminum spacer, argon gas optional |
| Insulation Strip | 35.3mm |

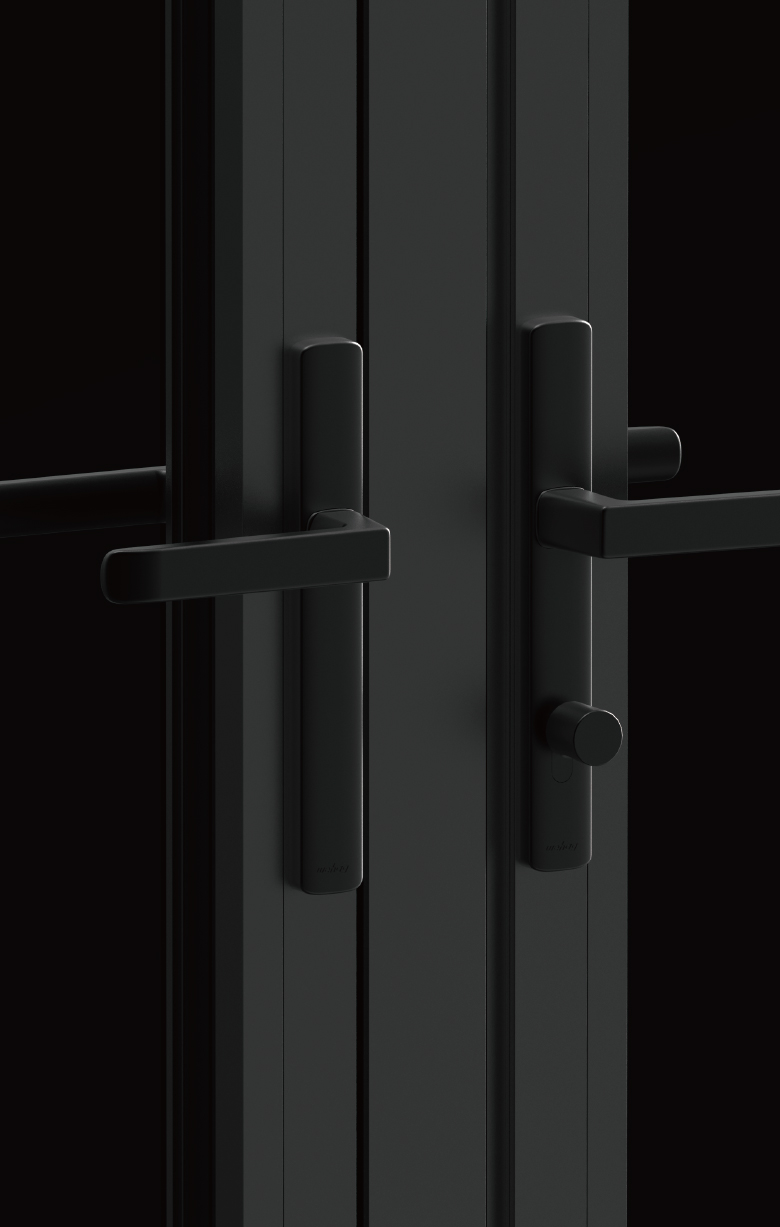

| Hardware | Germany WEHAG Brand antibacterial double handle (Black or Silver） |

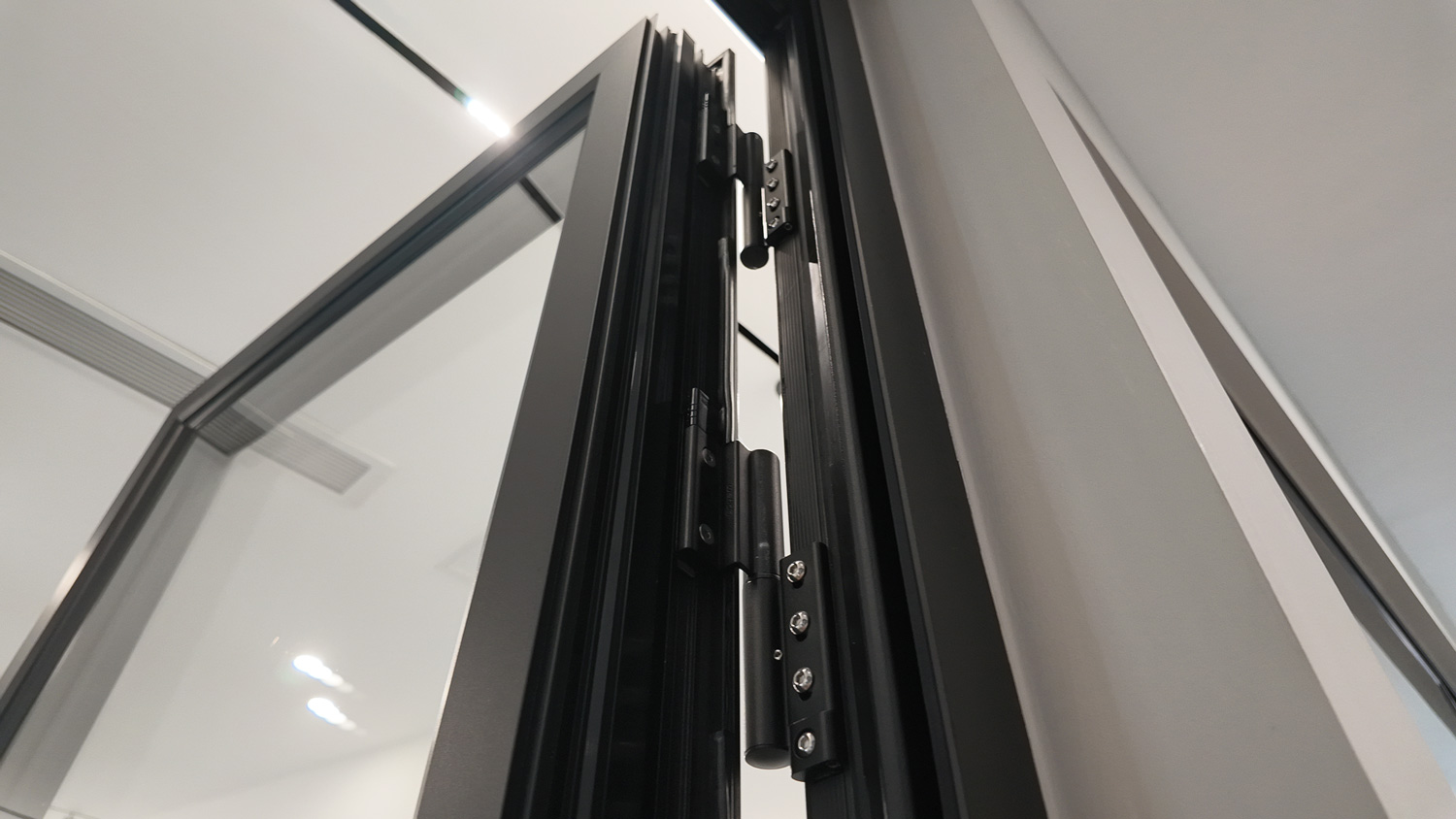

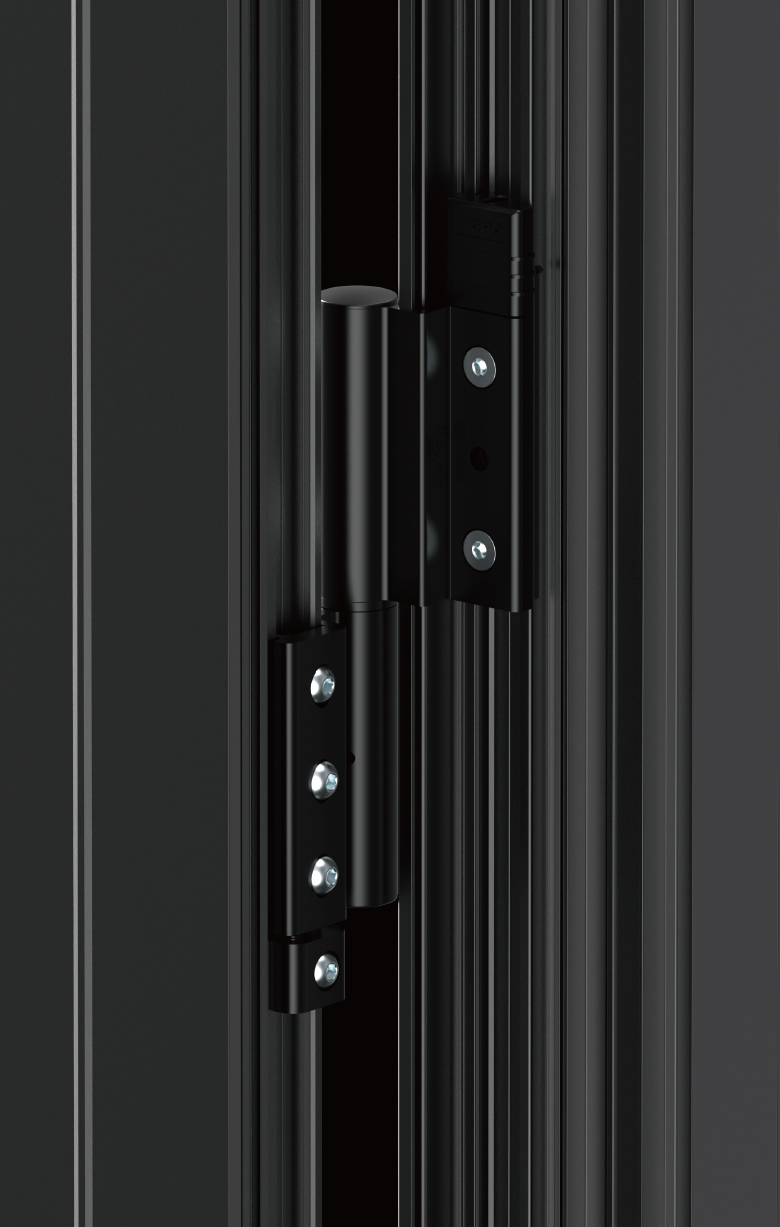

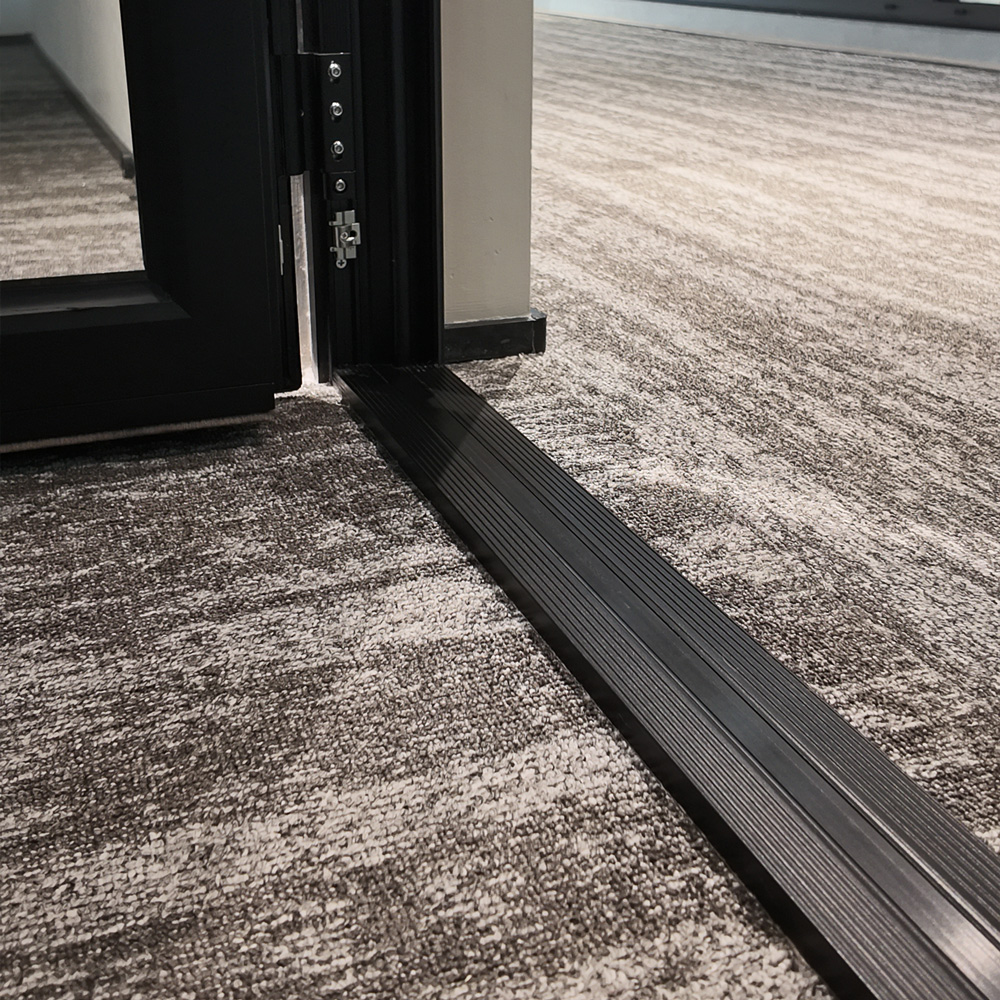

| Germany WEHAG Brand Flush-mount Pillar Hinge | |

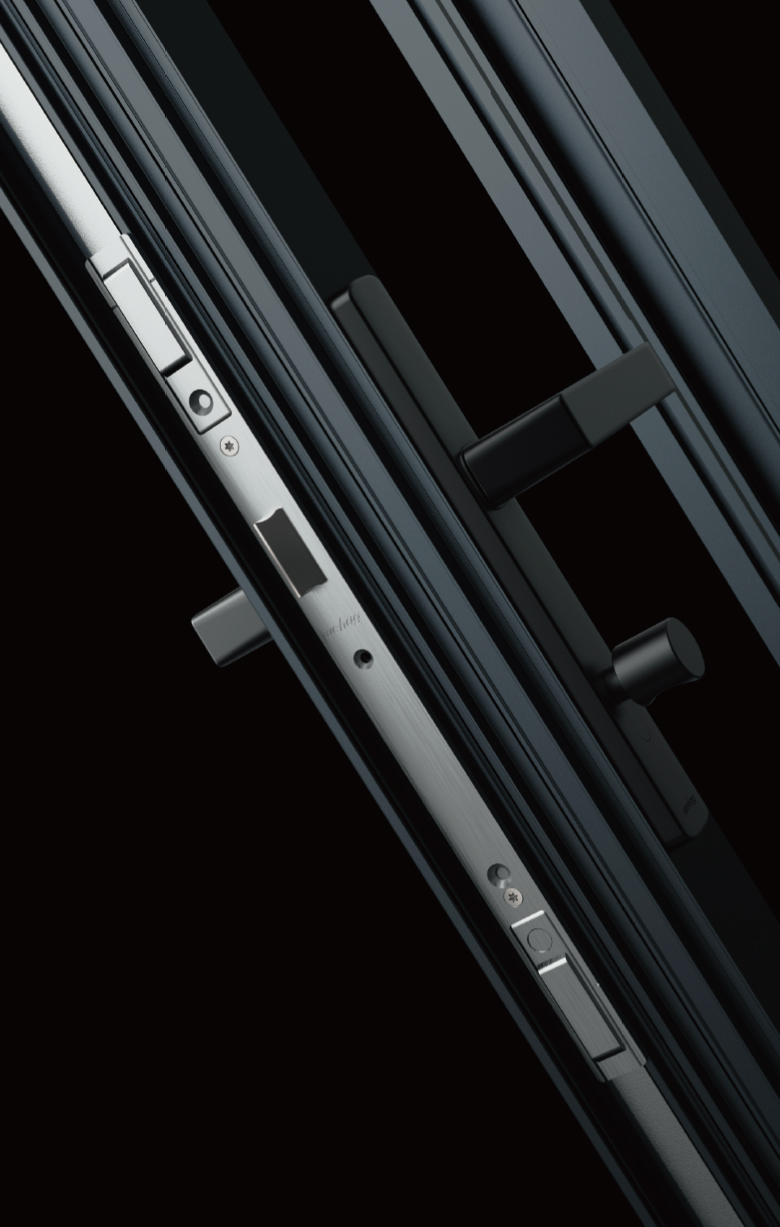

| Germany WEHAG Brand Anti-pry two-point lock | |
| Assembly | Corner bracket assembly |
| Sealing | EPDM sealing strip, silicone sealant |
| Surface Finish | Sandblasting and powder coating |
Experienced in supplying aluminium window and door solutions for Australian residential and commercial projects. Supported by advanced production facilities and an experienced technical team, we provide flexible customization options including window systems, door systems, and project-based solutions tailored to architects, builders, developers, and distributors.
