PRODUCT CONFIGURATION: 1.WINDOW SYSTEM : THERMAL BREAK 2.PROFILE TYPE: 6063-T5 3.PROFILE THICKNESS: FRAME 2.0MM 4.SURFACE COATING: POWDER COATING / PVDF COATING 5.STANDARD GLASS CONFIGUATION : 5MM+27A+5MM 6.HARDWARE SYSTEM : GERMANY WEHAG 7.ENERGY RATING : U - VALUE ≤ 0.18 / SHGC ≤ 0.21
The table below outlines the key specifications of the Thermal Break Aluminum Casement Window. It covers structure, materials, glass options, hardware, finishes, and size range for quick reference.

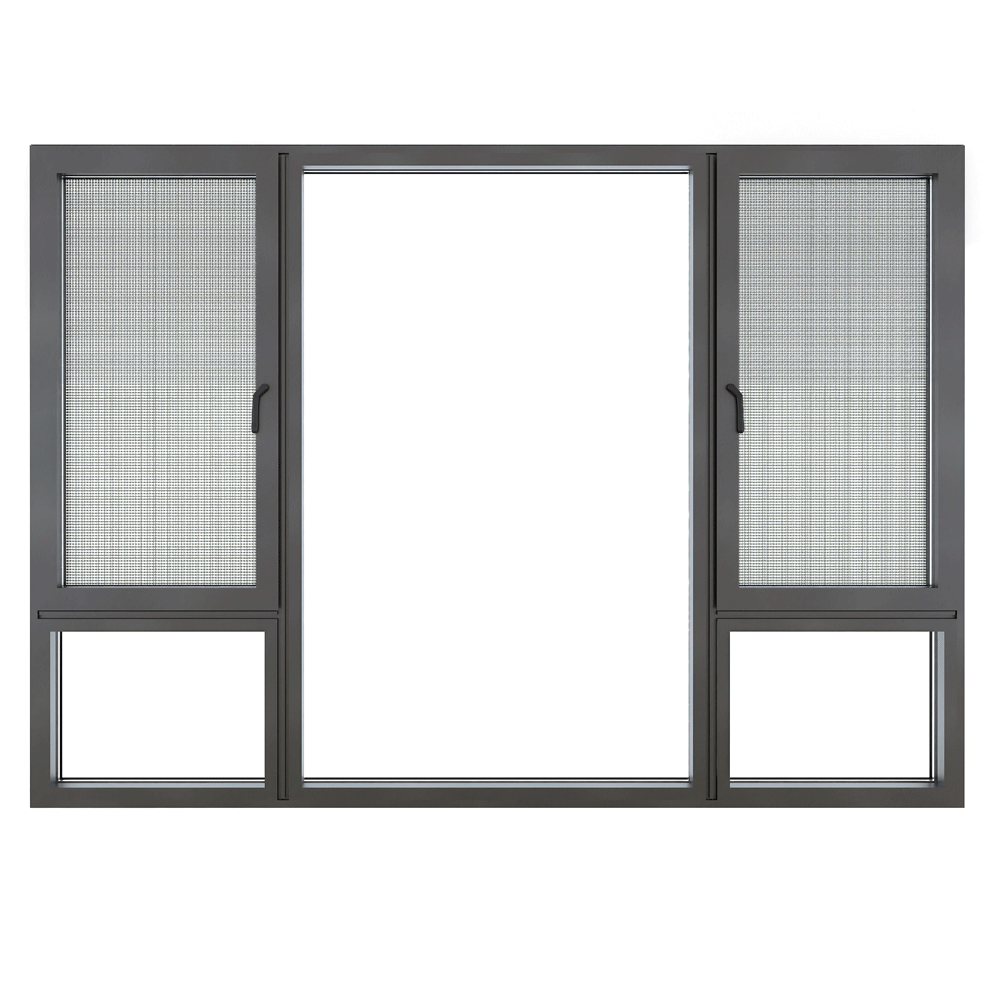

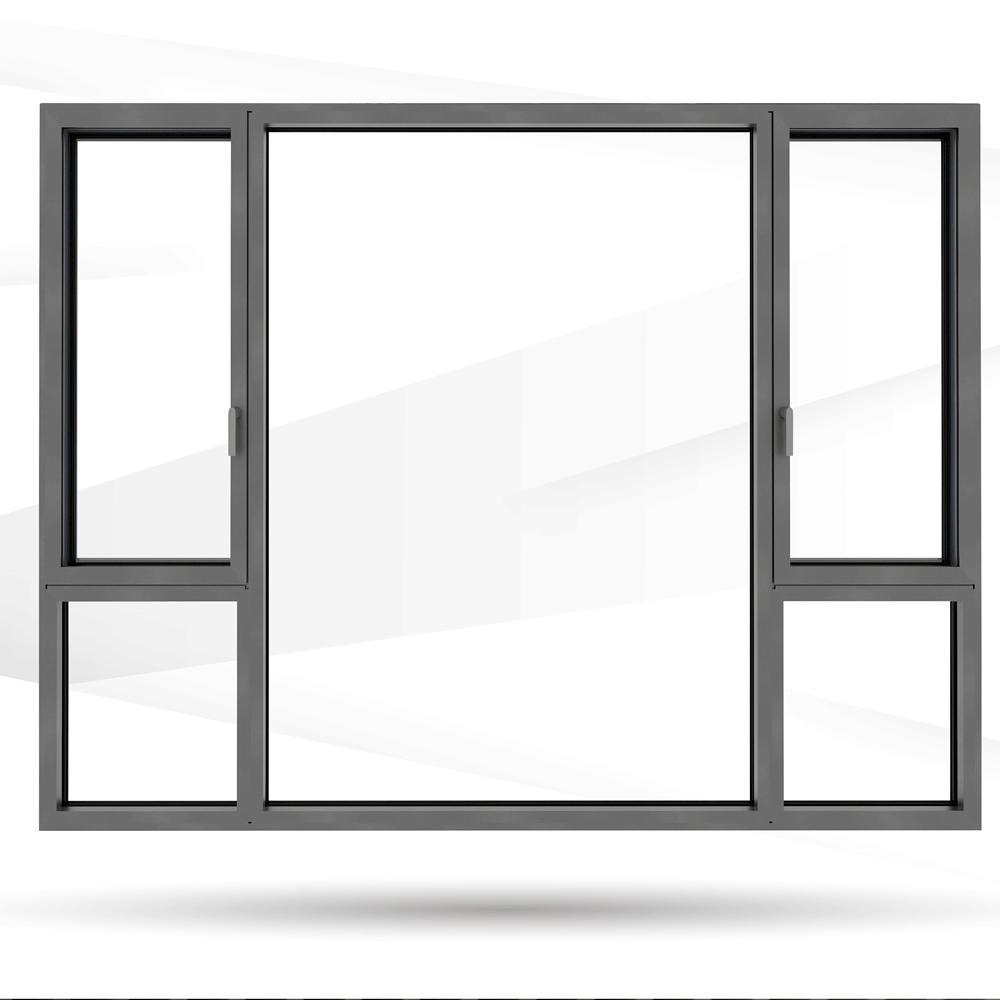

| Window Type | Thermal Break Aluminum Casement Window |

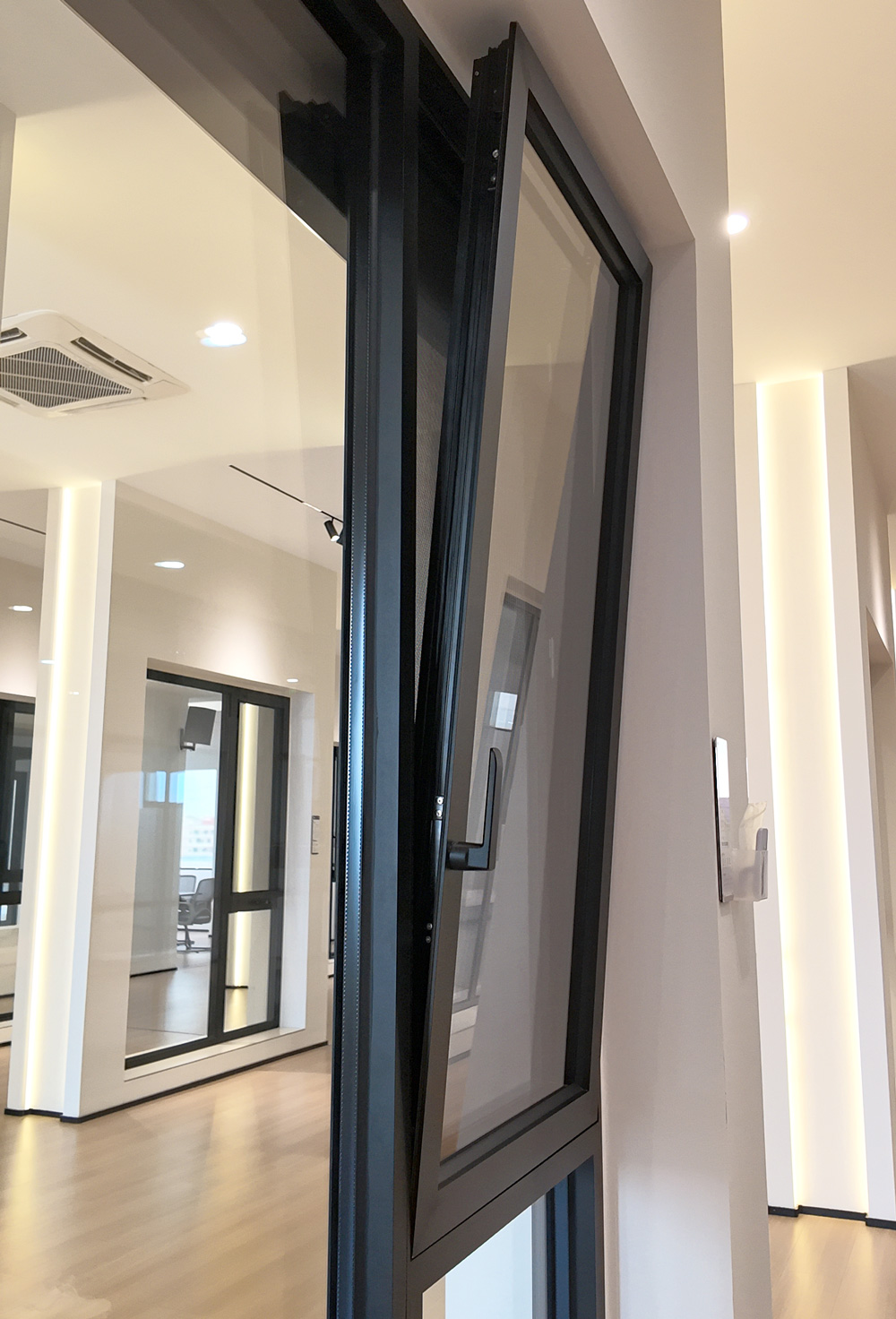

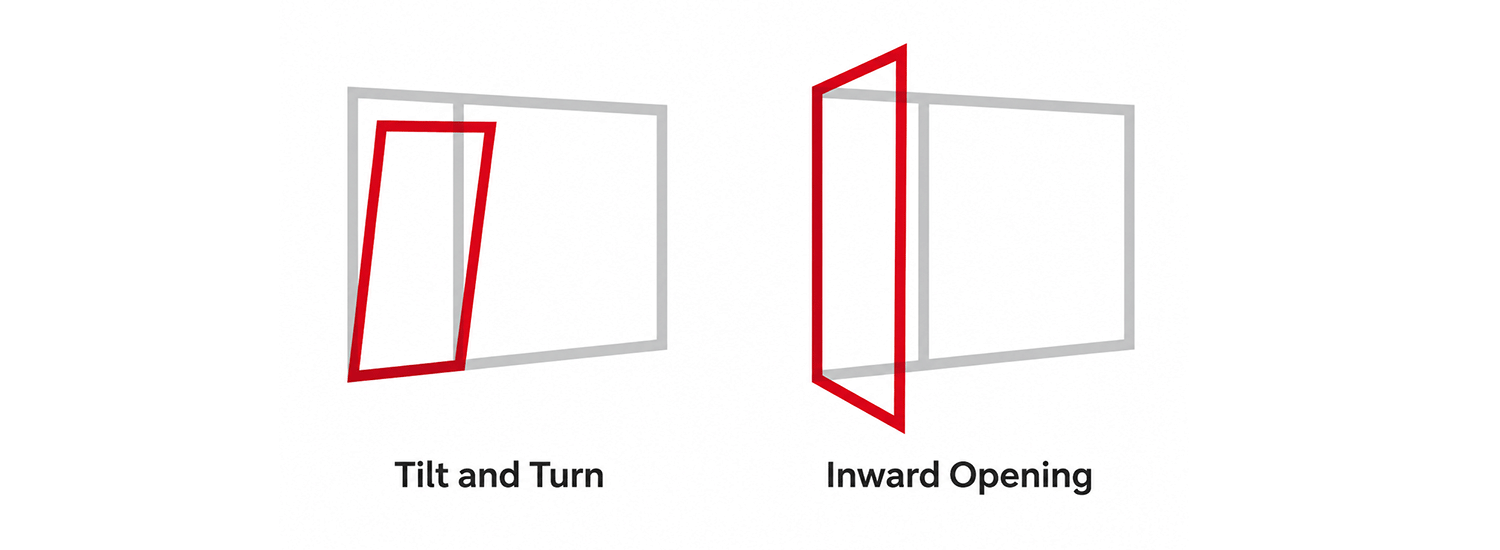

| Opening Type | Inward Opening Casement，Tilt and Turn Window |
| Standard Configuration | 6063-T6 Primary aluminum Profile |
| 1.8mm aluminum profile thickness | |
| Standard Glass | 5mm+27Ar+5mm double tempered insulated glass with PVDF Spacer |
| Glass Details | Aluminum spacer, argon gas optional |

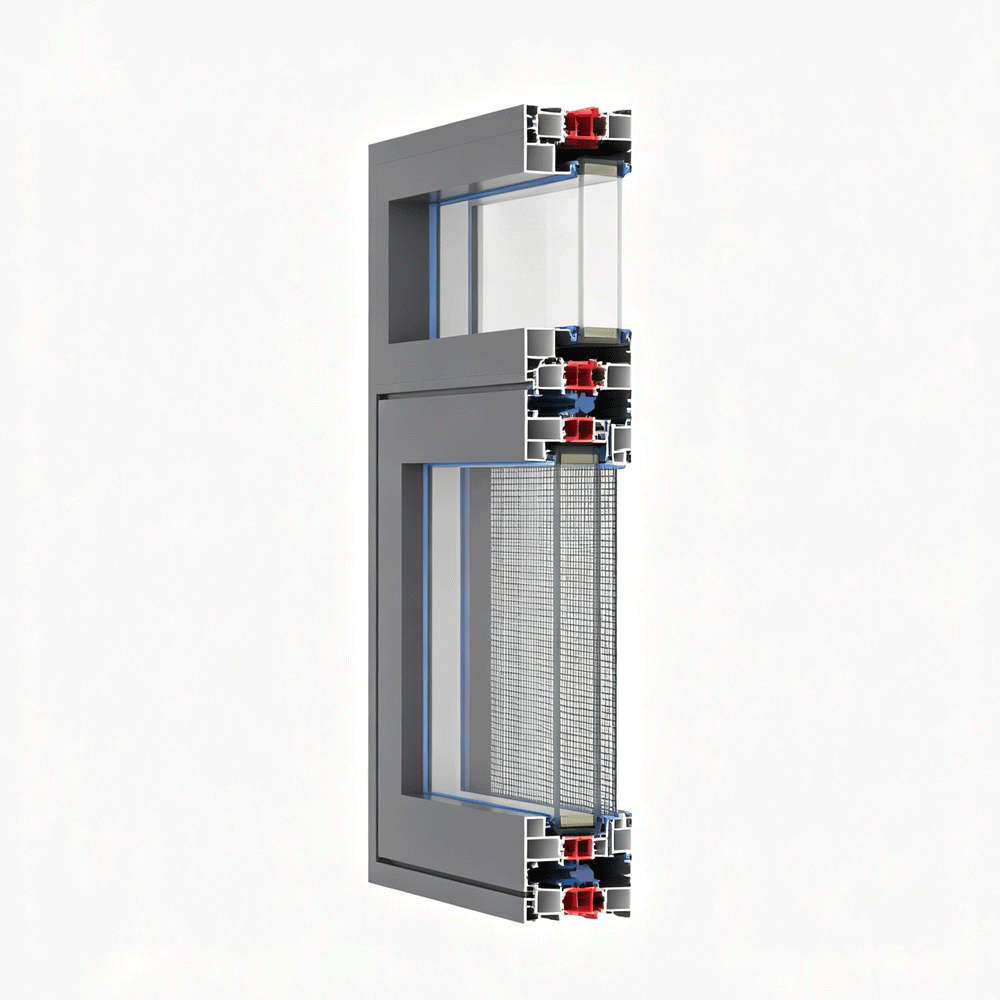

| Insulation Strip | Outer frame 35.3 mm, sash 25.3 mm. |

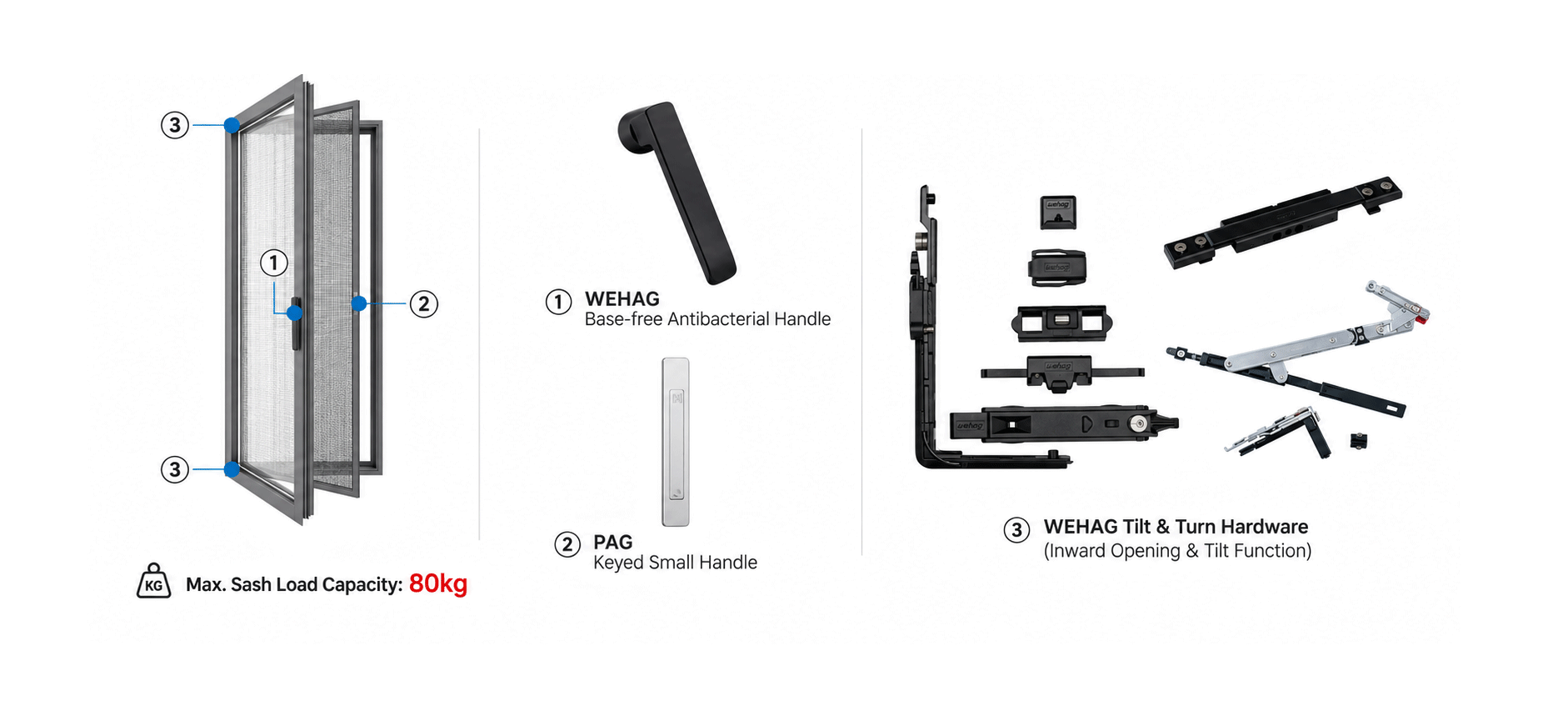

| Hardware | Germany WEHAG Brand antibacterial handle (Black or Silver） |
| Germany WEHAG Brand Tilt and Turn Hinges | |
| Germany WEHAG Brand Lock Point & Lock Seat | |
| Assembly | Corner bracket assembly |
| Sealing | EPDM sealing strip, silicone sealant |
| Surface Finish | Sandblasting and powder coating |
Experienced in supplying aluminium window and door solutions for Australian residential and commercial projects. Supported by advanced production facilities and an experienced technical team, we provide flexible customization options including window systems, door systems, and project-based solutions tailored to architects, builders, developers, and distributors.
