110 SERIES HAND-CRANKED WINDOW

41 Views

PRODUCT CONFIGURATION:

1.WINDOW SYSTEM : THERMAL BREAK

2.PROFILE TYPE:  6063-T5

3.PROFILE THICKNESS: FRAME 1.6 MM

4.SURFACE COATING: POWDER COATING / PVDF COATING

5.STANDARD GLASS CONFIGUATION : 5MM+27A+5MM

6.HARDWARE SYSTEM : HOPO

7.ENERGY RATING : U - VALUE  ≤ 0.23 /  SHGC ≤  0.25

Get A Free Quote

Category :

OUTSWING WINDOW

Description

110 Series Australian hand-cranked Window

Outward Opeing
1.8 mm profile thickness
Aluminum Profile : 6063-T6 primary aluminium profile
Profile width occuping wall :110mm
Glass : 5mm+20Ar+5mm double tempered glass with argon gas(Laminated glass/LowE glass/Reflective glass/Tinted glass/warm edge all availabe)
Surface treatment : Powder Coating, Anodized,Wooden Grain,PVDF Coating
Package :Protection foam with heat contracted plastic film /wooden packing

Our products have passed the Australianinspection and obtained the import approval.

Fixed screen mesh, Easy disassembly and cleaning

Our aluminium awning window range is our most extensiveproduct range, with a wide variety of styles and configurations to

suit any home.

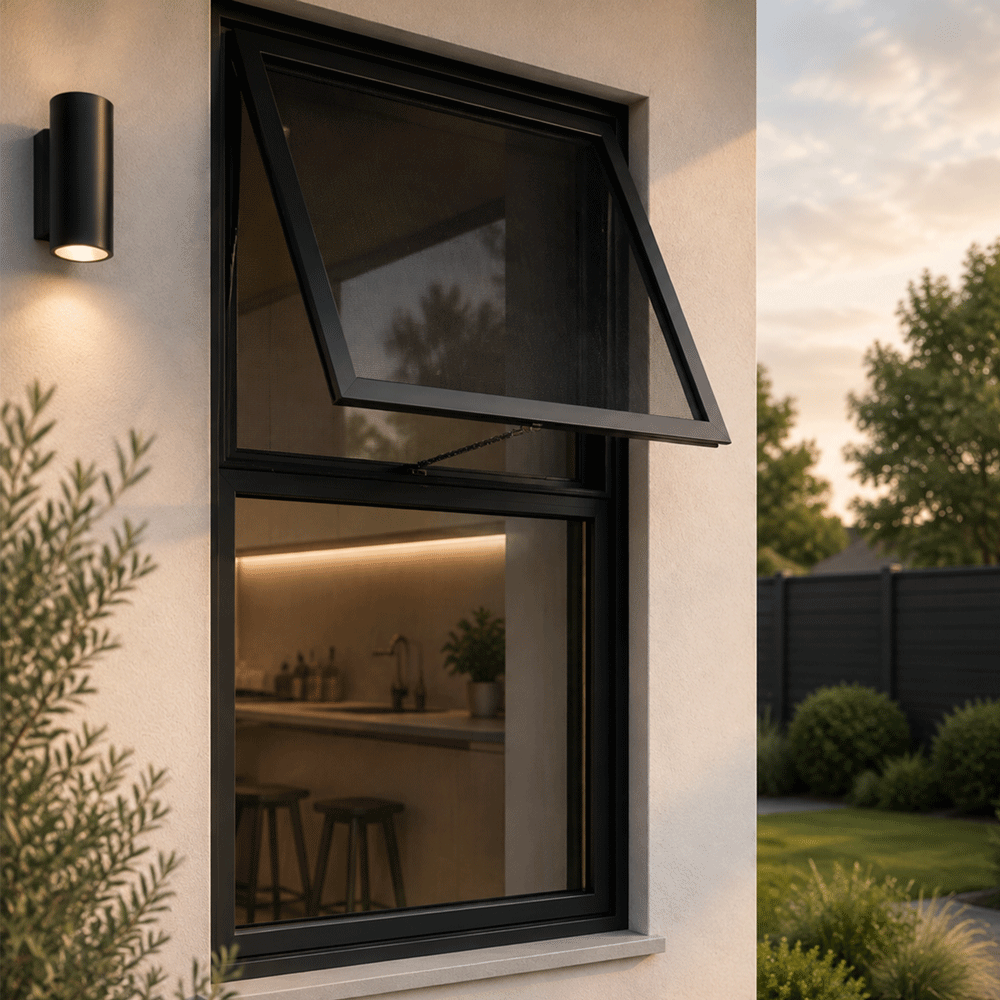

Our aluminium awning windows are both stylish and durable,offering the benefits of added aesthetics and ventilation. Hingedfrom the top and opening at the bottom, awning windows allow forventilation in all weather conditions through a casement style thatpromotes improved airflow.
